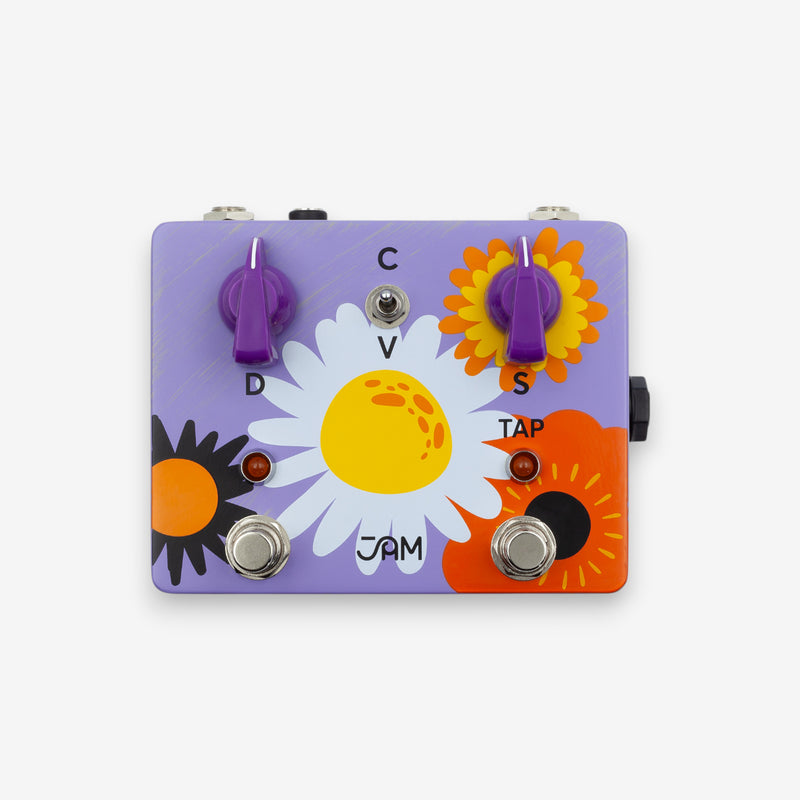

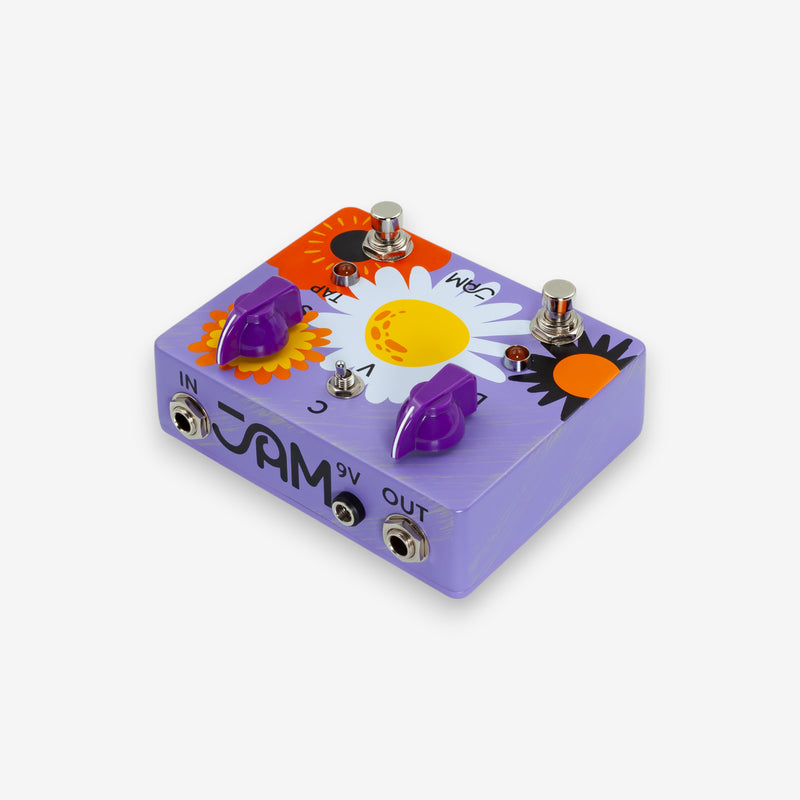

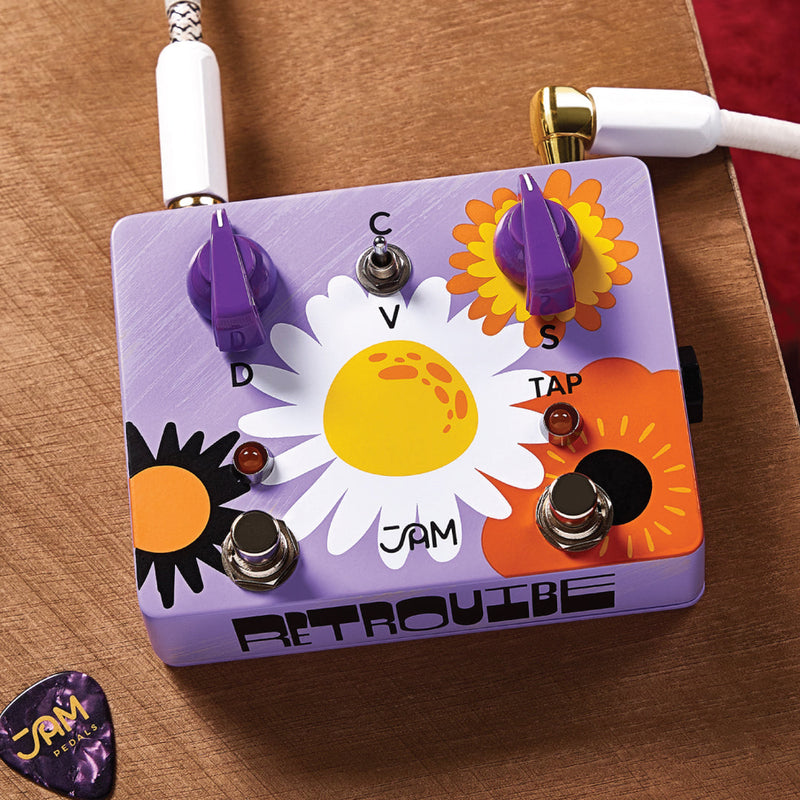

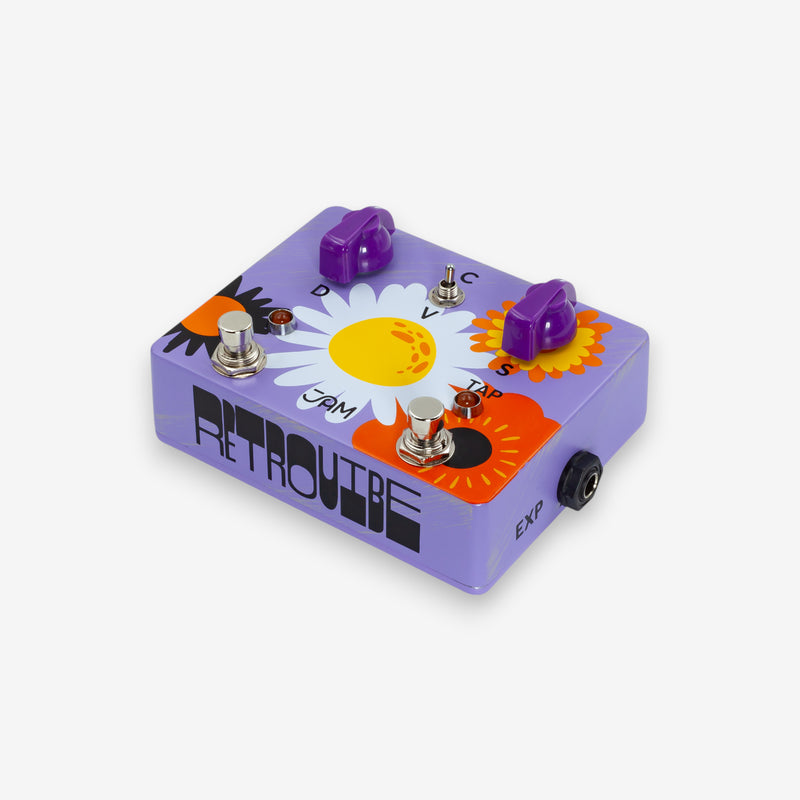

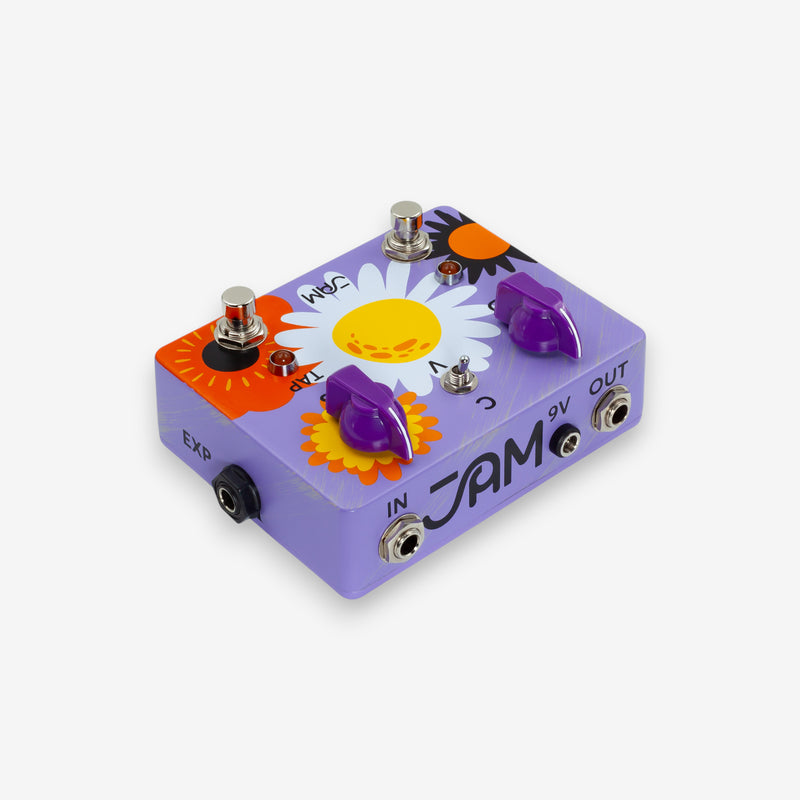

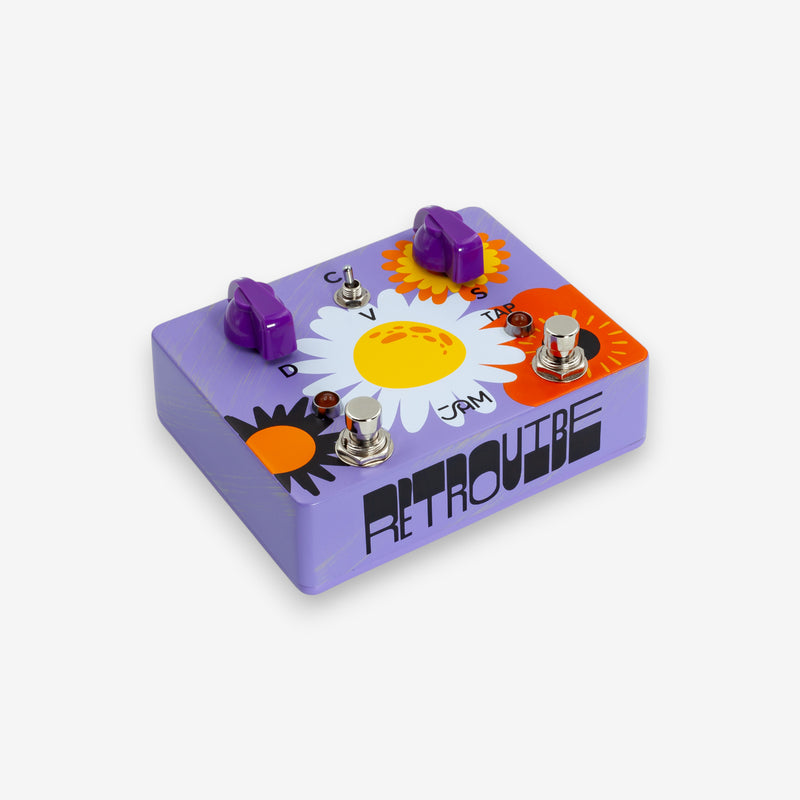

JAM Pedals RetroVibe MK 4
Free returns on all eligible orders
You have 14 days to request a return. All sale items are final sale. Read our full Warranty Policies here
The RetroVibe mk.4 is an all-analog Uni-Vibe-style modulation pedal with lush pulse, vocal shimmer and unmistakable vintage warmth. Expanded Depth and Speed ranges move from slow liquid waves to fast rotary-like spins, while Chorus and Vibrato modes provide two distinct ways to shape the movement.
Tap tempo makes the rate easy to lock in onstage, and the Ramping function glides from the current speed to a second user-defined rate for dramatic transitions. Connect a standard passive 10 kΩ expression pedal for continuous real-time Speed control. The mk.4 preserves the soul of the original RetroVibe while making it far more expressive in performance.
CHORUS AND VIBRATO
The toggle selects Chorus for the classic pulsing phase character or Vibrato for pitch-focused movement.
TAP TEMPO AND RAMPING
Tap the TAP/RAMP footswitch to set modulation speed. Hold it to ramp to a second speed; while holding, adjust Speed to set the destination and Depth to set travel time.
EXPRESSION CONTROL
A TRS input accepts a standard passive 10 kΩ expression pedal for continuous Speed control. A separate TS input accepts an external tap-tempo switch.
LEVEL AND STARTUP
An internal trimmer sets maximum output level. The power-on state can be toggled by inserting power while holding the ON footswitch.
ARTISTS USING THIS PEDAL
Paul Gilbert, Joey Landreth (The Landreth Bros), J Mascis (Dinosaur Jr), Dweezil Zappa, Ruban Nielson (Unknown Mortal Orchestra)
"The RetroVibe gets all the details right. Great Hendrix/Trower style tones, simple intuitive controls, 9 volt power, good footswitch clearance (so my big foot doesn't bump the knobs), and awesome paint job!" Paul Gilbert
"The Retrovibe has all the tone as bigger box versions with a much friendlier footprint, easier to power and a fun paint job!" Joey Landreth
"I love the RetroVibe! It is a magic piece of equipment! It is almost on every single guitar track on the new record. I hardly turn it off these days!" Ruban Nielson
SPECIFICATIONS
- Bypass: true bypass
- Circuit: all analog
- Power: 9V DC, centre-negative
- Maximum current draw: 120 mA
- Expression input: passive 10 kΩ
- Dimensions including jacks, controls and footswitches: 12 x 10 x 5 cm / 4.7 x 3.9 x 1.9 in
- Weight: 350 g / 0.77 lb
- Input impedance: 67 kΩ
- Output impedance: <10 kΩ
- LFO range: 0.5-9.5 Hz
Shipping information
Singapore & Malaysia - FREE for orders over $100. 2-3 days delivery for Singapore orders, 3-5 days delivery for Malaysia orders
International orders - Add to cart, input your shipping address and click checkout to see a shipping quote. 1-2 days delivery within Asia, 3 days delivery to the rest of the world
Returns & warranty
- 14 days free return
- 14 days 1-1 exchange guarantee
- 30 days Echoinox limited warranty
- Lifetime support for manufacturer's warranty
